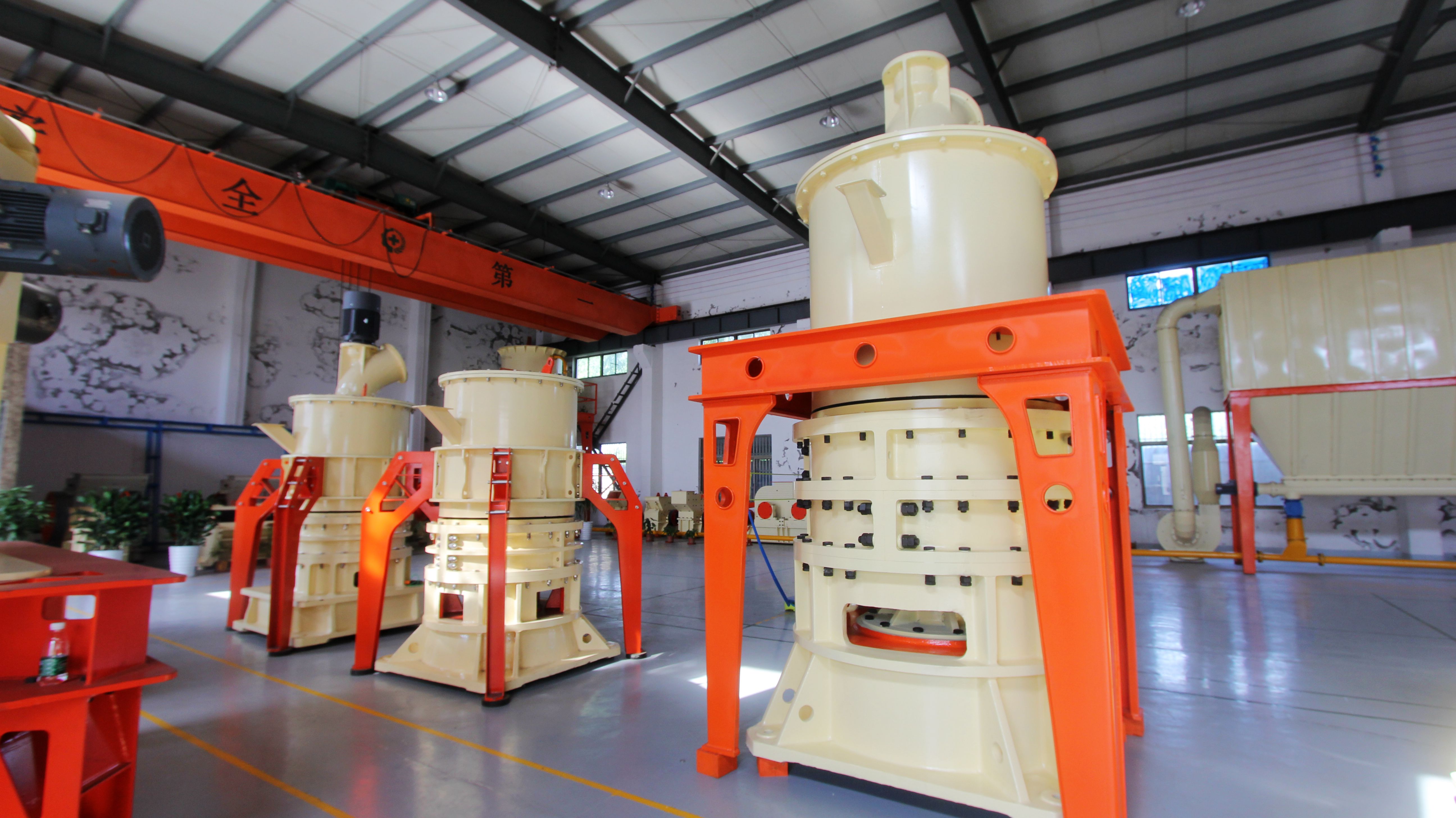

HGM series Bauxite grinding mill manufacturers:
Shanghai Clirik Machinery Co., Ltd. is a manufacturer of HGM series grinding mill, rock grinder mill, stone grinding mill, ore mill grinder, ultrafine powder mill, and micro powder mill.
Application of Bauxite grinding mills, grinding mills:

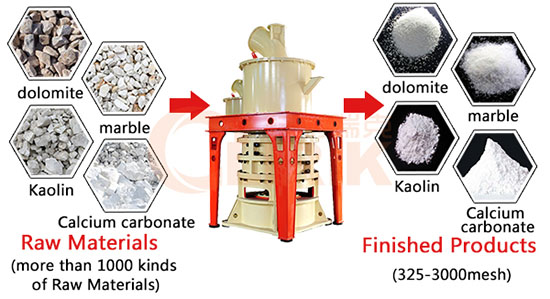

Grinding materials of our HGM Micro Powder Grinder mill include various stones and rocks, such as: Kaolin, limestone, calcite, marbles, barites, gypsums, pyrophyllites, dolomites, calcium carbonates, pigments, clays, coals, carbon black, activated carbons, feldspar, talc, mica, carbon black, petroleum coke, alumina, chromic oxide, quartz, cements, up to more than 100 materials. Product fineness can be controlled between 325~2500 mesh.
Structure of Bauxite grinder mills, grinding mills:
Bauxite grinder mills, grinding mills mainly consists of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.
Working principle of Bauxite grinding mills, grinding mills:
After crushed by hammer crusher, the large materials become small ones and are sent to storage hopper by elevator, edge of then evenly sent to the upper distribution plate of the turn plate by vibrating feeder and sloping feeding pipe. When the grinding mill is at work, all the grinding rollers are rolling in the ring, and the materials are driven to the edge of the turn plate by the centrifugal force and fall down into the grinding chambers where the materials are repeatedly pressed, crushed and grinded by the rollers. The high-pressure air blower constantly inhales air within the grinding mill and, in turn, the air flow with crushed materials are brought to the classifier whose high-speed impeller will screen the airflow: the unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. Most of the qualified powders will fall an exit from the discharging valve at the bottom; a small proportion of the fine powders, with airflow, moves to the dust cleaner, and clings to the surface of the filter bags. At the same time, the fine powders clinging to the surface fall down by the sudden vibration of the filter bags, which is caused by the instantly ejected high-pressure gas controlled by the pulse valve. The materials from the above two lots are sent by the conveyor at the bottom to get finished powders packed. In addition, filtered clean air will be emitted from the air outlet of muffler in the end.
Features of Bauxite grinder mills, grinding mills:
1. High efficiency
Under the same finished final size and the same motor power, the capacity of micro powder grinding mill is twice as much as jet mill, mixing grinder and ball mill.
2. Long life cycle of spare parts
The ring and roller are forged by special material with high utilization. Under the same grinding material and finish special size, the lifecycle of spare parts is about one year, which is 2-3times longer than impact mill or turbo mill. Furthermore, the lifetime can reach 2-5 years for grinding calcite carbonate.
3. High safety and reliability
As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.
4. High fineness and flexible adjustment
The final fineness of the grinding materials can be adjusted between 325 meshes and 3000 meshes, and the product fineness can reach D97≦5um.
5. Environment-friendly
The application of pulse deduster and muffler greatly alleviates dust pollution and noise.
Application of bauxite grinder mills, grinding mills:
Grinding materials of our HGM Micro Powder Grinder mill include various stones and rocks, such as: Kaolin, limestone, calcite, marbles, barites, gypsums, pyrophyllites, dolomites, calcium carbonates, pigments, clays, coals, carbon black, activated carbons, feldspar, talc, mica, carbon black, petroleum coke, alumina, chromic oxide, quartz, cements, up to more than 100 materials. Product fineness can be controlled between 325~2500 mesh.
|
Parameters of HGM Series Ultrafine Grinding Mill |
|
Model |
HGM80 |
HGM80A |
HGM90L |
HGM100L-Ⅱ |
HGM100P |
HGM125L |
HGM1680L |
|
Ring Diameter(mm) |
800 |
800 |
900 |
1000 |
1000 |
1250 |
1680 |
|
Ring Number (PCS) |
3 |
3 |
4 |
4 |
4 |
4 |
4 |
|
Input Size (mm) |
≤10 |
≤10 |
≤10 |
≤15 |
≤15 |
≤20 |
≤20 |
|
Output Size (mesh) |
150-3000 |
150-3000 |
150-3000 |
150-3000 |
150-3000 |
150-3000 |
150-3000 |
|
Capacity (t/h) |
0.5-5.5 |
0.5-5.5 |
0.8-6.5 |
1.2-10 |
1.2-11 |
2.5-20 |
5-45 |
|
Outlet Size L*W*H (mm) |
8605*4139*6050 |
10454*3393*6626 |
11735*3952*7525 |
14507*3633*7562 |
14362*4200*7562 |
19261*4406*8591 |
25067*5414*9007 |
|
Main Motor Power (kw) |
75 |
75 |
55*2 |
132/75*2 |
132/75*2 |
185 |
315 |
