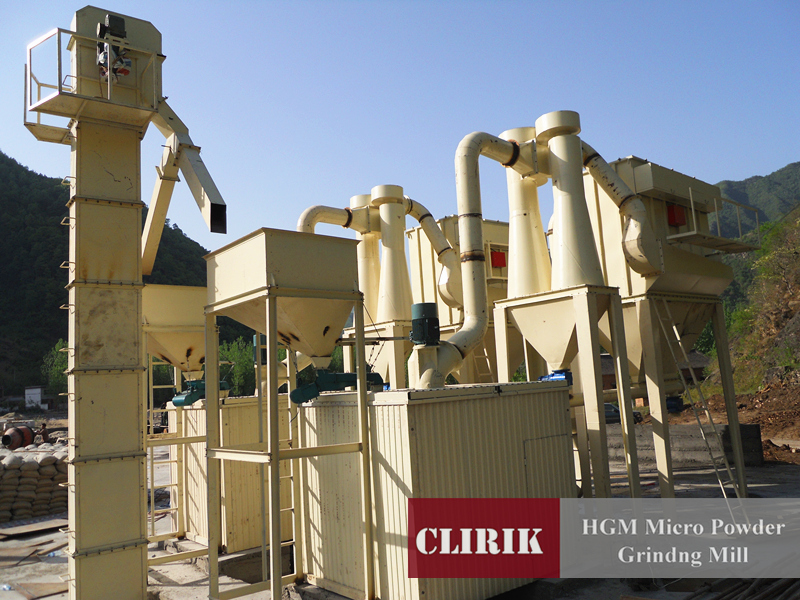

Calcium carbonate powder making machine

Overview of Calcium carbonate powder making machine:

There are five types of Shanghai CLIRIK Calcium carbonate powder making machine, they are HGM80, HGM90, HGM100, HGM100A and HGM125. The finished production fineness can be reached 300meshes~3000meshes, 5-47 micron. The capacity (ton/hour) ranges from 0.4T/H to 12T/H.

Technical data of Calcium carbonate powder making machine:


Model	HGM80	HGM90	HGM100	HGM100A	HGM125
Ring Diameter(mm)	800	930	1035	1035	1300
Ring Number (PCS)	3	3-4	3	4	4
Roller Number(PCS)	21	24-32	27	34-36	40-44
Main Shaft Speed (r. p. min)	230-240	200-220	180-200	180-200	135-155
Input Size (mm)	≤20
Finished Size (um)	5-47(325-2500)
Capacity (t/h)	0.5-4.5	0.6-6.5	0.7-7	1-8.5	1.5-12
Outlet Size L*W*H (m)	13.9*4*6.2	14.7*4.8*7.2	18*4.6*8.6	18*4.6*8.6	14*9*10.25
Motor powder (KW)	145-165	185-204	263	263-290	380-430


Note: This specification is just referencing, any changes are subject to the products.

Please email Lily(lilywang@clirik.com ) for more details.
