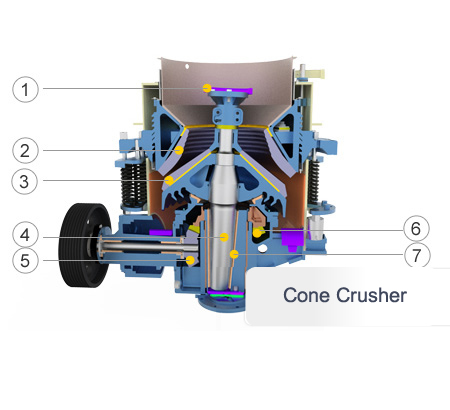

Structure of Cone Crusher (Take HPC220 For Example)

• Concave
• Mantle
• Main Shaft
• Pinion
• Socket Liner
• Bushing
• Gear

Wear Parts Of Cone Crusher

Concave

Concave is installed at the top of cone crusher crushing chamber

Mantle

Mantle is installed at the top of movable head ball assembly.

Main Shaft

Main Shaft is installed in the center of cone crusher

Pinion

Pinion is at the end of horizon-shaft that links with pulley

Socket Liner

Socket liner is installed at the top of main shaft

Bushing

Bushing is installed between the main shaft and eccentric sleeve assembly

Gear

Gear links with pinion

Feed Plate

Feed Plate is installed at the top of main-shaft.
