GZ series vibrating feeder

Introduction of vibrating feeder: Vibrating Feeder is a kind of linear direction feeding equipment. It features smooth vibrating, reliable operation, long service life and being suitable for feeding. They are widely used in mining, building

Over View
Features
Applications
Technical Data

Introduction of vibrating feeder:

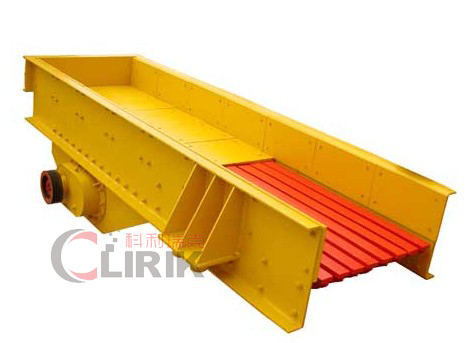

Vibrating Feeder is a kind of linear direction feeding equipment. It features smooth vibrating, reliable operation, long service life and being suitable for feeding. They are widely used in mining, building-material, silicate and chemical industry in the crushing and screening plants. In the Sand-Stone production line, it can send materials to crusher evenly and continuously and at the same time, it can screen materials roughly. It can be used in these areas such as metallurgical industry, coal mining industry, mining-selecting, building, chemical and grinding industry, etc.

Features and Benefits

1. Stable and long span life.

2. easy to adjust.

3. Reliable operation.

4. Easy maintenance.

5. No pollution.

Operating principle of vibrating feeder:

Vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through the vibration, the materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, avoid the further crushing, so screening purpose can be reached.

1. Stable and long span life.

2. easy to adjust.

3. Reliable operation.

4. Easy maintenance.

5. No pollution.

Product Detail:



Place of Origin:

Shanghai China (Mainland)

Manufacturer:

Clirik- Manufacturer of Crusher and Mill

Equipment Model Number:

Feeder

New / Used:

New

Mobile / Stationary:

Stationary

Part / Unit:

vibrator, spring, frame

Application:

crushing, grinding

Field of Application:

metallurgical, construction, coal mining, mining selecting, chemical

Payments & Shipping Terms:



Price:

Get Price

Minimum Order Quantity:

1Sets

Delivery time:

30 days

Payment Terms:

L/C T/T

Certificate:

CE

Supply Ability:

100 Sets per month



Detail Specification of vibrating feeder:



Model

GZ1

GZ2

GZ3

GZ4

GZ5

Input capacity (t/h)

5

10

25

50

100

Max input size(mm)

50

60

70

100

150

Motor power (W)

60

150

200

450

650

Voltage(V)

220

Current(A)

1

2.8

≦3.8

≦7

≦10.6

Double-amplitude(mm)

1.75

Bottom clearance(mm)

1.9-2.2

Weight (kg)

73

155

225

460

656

Note:This specification is just referencing, any changes are subject to the products.
